CHANGES: | MOCA, NAVIM DVOR LTE RADIAL. |
LANZAROTE/César Manrique Lanzarote AD
VISUAL MANOEUVRE (IN CIRCUIT) USING PRESCRIBED TRACKS VIA IAC RNP RWY21 ONLY
DERROTA MOTOR Y AL AIRE
If the visual references are lost after RR551, complete the VPT manoeuvre climbing as far as THR 21 (heading 211210º). Direct to DVOR/DME LTE, follow R-196 LTE to intercep and follow arc 8.0 DME LTE to reach 2000 ft and then await ATC instructions.
In case of communications failure: If visual references are lost after RR551, complete the VPT manoeuvre climbing as far as THR 21 (heading 211210º). Direct to DVOR/DME LTE, follow R-196 LTE to intercept and follow arc 8.0 DME LTE at 2000 ft or less, to intercept and follow R-090 LTE, and follow arc 16.0 DME LTE to R-060 LTE. Turn direct to NAVIM to join holding at 4000 ft.
|
| A | B | C | D |
VIA IAC RNP | OCA/H |
1700 | |||
RWY 21 ÚNICAMENTE // ONLY | VIS | 8900 | |||

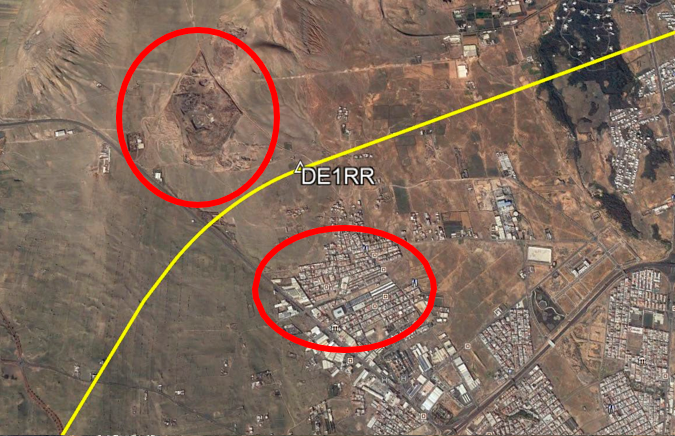

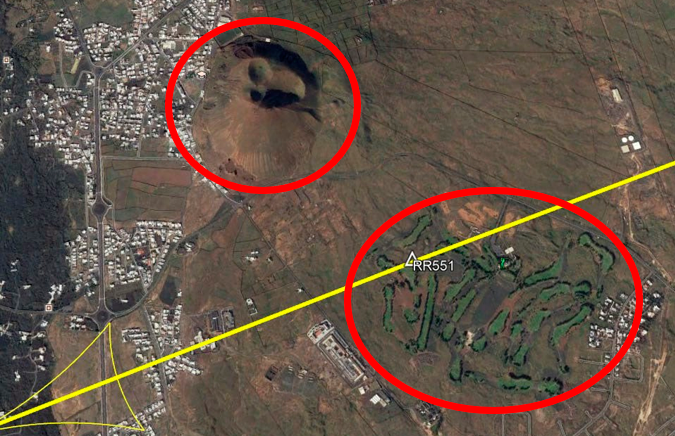

PUNTO // POINT RR551 | PUNTO // POINT DE1RR | |
|
| |
Montaña de Tahiche/Campo de Golf // Tahiche Mountain /Golf Course | Cantera/ Polígono industria Aragana (No sobrevolar hospital) // Argana Quarry/Industrial Estate (Do not overfly hospital) | |

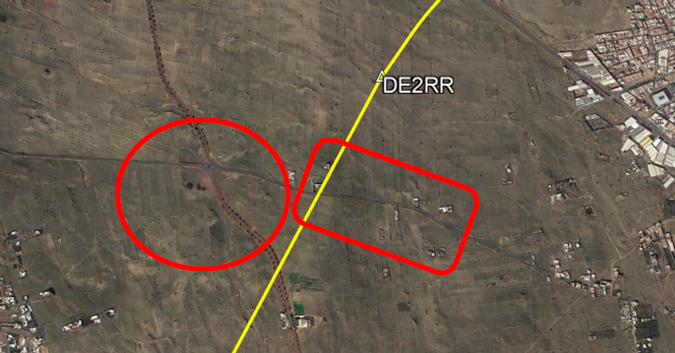

PUNTO // POINT DE2RR | ||
| ||
Rotonda LZ301/ Carretera Arrecife – Güime // Roundabout LZ301/ Arrecife- Güime Highway | ||
