MISSED APCH
If the visual references are lost after CO401, complete the VPT manoeuvre climbing as far as THR 03 (heading 033º). Follow R-211 LRA direct to reach DVOR/DME LRA to join the holding at 3500 ft.
A |
B |
C |
D |
||
|---|---|---|---|---|---|
|
VIA IAC RNP
|
OCA/H (ft) |
1500
|
– |
||
VIS (m) |
4900 |
– |
|||
POINTS
|

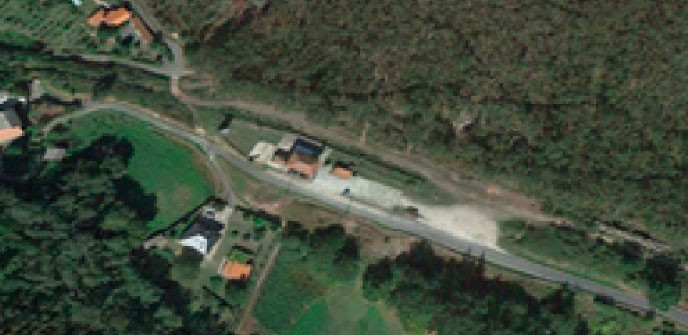

POINT CO401: “Former station” not in use and tracks dismantled. |

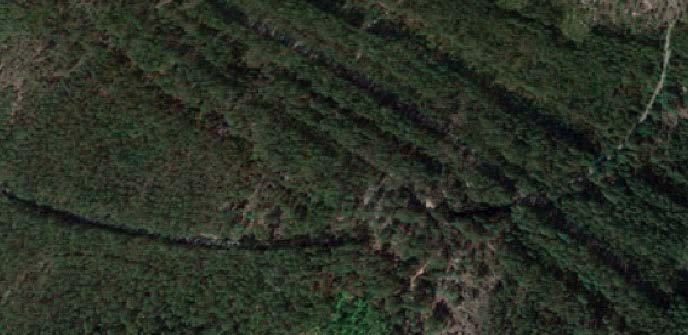

POINT CW1CO: Tunnel |
|
|
|
REMARKS
PAPI (MEHT)
RWY 03: 3.42º (54 ft).
The visual references of the points CO401 and CW1CO are lit with fixed red, medium-intensity type C beacons of 2000 candelas.
For information purposes the geographic coordinates of the points are included:
CO401: 431604.8N 0082609.9W
CW1CO: 431555.5N 0082536.8W
CW2CO: 431618.0N 0082407.9W
CW3CO: 431730.1N 0082308.7W
