LEEC AD 3 HELIPORT DATA

HELIPORT LOCATION INDICATOR and-NAME

LEEC - SEVILLA/El Copero

HELIPORT GEOGRAPHICAL AND ADMINISTRATIVE DATA

	Heliport reference point	371847N 0055957W. See AD 3-LEEC HELC.
	Distance and direction from the city	6 km S.
	Elevation	5 m / 17 ft.
	Geoid undulation	49.40 m ± 0.05 m (1).
	Reference temperature	Information not available.
	Low average temperature	10°C.
	Magnetic variation	1°W (2020). Annual change: 7.9'E.
	HLP administration	Ejército de Tierra.
	Address	Base El Copero (Bhelma IV). Ctra de la Isla s/n. 41011 - El Copero (Sevilla).
	Contact	TEL: +34-954 937 800 FAX: +34-954 939 070
	AFTN	LEEC
	Email	No.
	Approved traffic	IFR/VFR. Exclusive military use.
	Remarks	(1) For all HLP points.

OPERATIONAL HOURS

	Heliport	MON-THU: V: 0530-1230 / I: 0630-1330, FRI and days before public holidays: V: 0530-1130 / I: 0630-1330, O/T, SAT, SUN and HOL O/R.
	Customs and Immigration	No.
	Health and Sanitation	No.
	AIS/ARO/OPV	HR HLP.
	MET briefing	HR HLP.
	ATS	HR HLP.
	Fueling	HR HLP.
	Handling	HR HLP.
	Security	H24.
	De-icing	No.
	Remarks	None.

HANDLING SERVICES AND FACILITIES

	Cargo facilities	Claws, ladders and crane.
	Fuel types	JP-8.
	Oil types	Information not available.
	Refuelling capacity	Trucks: 5000 L; 7.5 L/s. 10000 L; 7.5 L/s. 25000 L; 7.5 L/s.
	De-icing facilities	No.
	Hangar space	No.
	Repair facilities	No.
	Remarks	2 GPU AC/DC.

PASSENGER FACILITIES

	Hotels	No.
	Restaurant	No.
	Transportation	No.
	Medical facilities	First aid and ambulance. Until 1500 LT.
	Bank/Post Office	No.
	Tourist information	No.
	Remarks	None.

RESCUE AND FIREFIGHTINGSERVICES

	Fire category	Information not available.
	Rescue equipment	Yes.
	Removal of disabled helicopters	Tractor with dragging bars.
	Remarks	None.

SEASONAL AVAILABILITY -/OBSTACLE CLEARING

	Equipment	No.
	Priority	No.
	Remarks	None.

Aprons, taxiways and check locations/positions dataMOVEMENT AREA DETAILS

	Apron	Surface: Cement. Strength: CAT A / 13000 kg máx. Stands: Surface: Cement. Strength: CAT A / 13000 kg máx.
	Taxiways	Width: 5 m. Surface: Cement. Strength: CAT A.
	Check locations	Altimeter: No. VOR: No. INS: No.
	Remarks	None.

MARKINGS AND MARKERS

	Final approach markings	No.
	Take-off markings	No.
	TWY markings	Information not available.
	TWY markers	No.
	Air Transit Route markers	No.
	Remarks	None.

HELIPORT OBSTACLES

In approach and take-off areas

Information not available.

In circling area and at HLP

Obstruction	Coordinates
Antenna 365.8 m/1200 ft	14.8 km/156°MAG FM TWR
Remarks	None.

METEOROLOGICAL INFORMATION SERVICE PROVIDED

	MET office	El Copero OMD.
	HR	HR HLP.
	METAR	Half-hourly.
	TAF	24 HR.
	TREND	No.
	Briefing	In person and by telephone.
	Flight documentation/Language	Charts and plain language / Spanish.
	Charts	Significant, forecasted in altitude (wind and temperature).
	Supplementary equipment	No.
	ATS unit served	OPV, TWR.
	Additional information	Sevilla OMAe (LESV): H24; TEL: +34-954 462 030, +34-954 460 699. El Copero OMD: HR HLP; TEL: +34-954 937 888; FAX: +34-954 937 889.
	Remarks	None.

HELIPORT DATA

	Type of heliport	Surface-level heliport.
	TLOF	Dimensions: Information not available. Initial Elevation: Information not available. Surface: Cement. Strength: CAT A. Coordinates: Information not available. Elevation: Information not available.
	FATO	Magnetic heading: 030°-210°. Dimensions: 345 x 46 m. Surface: Cement. Coordinates: THR 03: 371842.18N 0060000.07W. THR 21: 371851.96N 0055953.24W. Elevation: THR 03: 5 m / 16 ft. THR 21: 5 m / 17 ft.
	Security zone dimensions	Information not available.
	Heliport CWY dimensions	Information not available.
	Clear sector	No.
	Remarks	None.

DECLARED DISTANCES

FATO	TODAH (m)	RTODAH (m)	LDAH (m)
03	345	345	345
21	345	345	345

Remarks: None.

APPROACH AND FATO LIGHTING

	Approach	No.
	HAPI	No.
	FATO lighting	Characteristics: Green, white, red. Location: Threshold, edge and end.
	Aiming point lighting	Characteristics: No. Location: No.
	TLOF lighting	Characteristics: No. Location: No.
	Remarks	None.

OTHER LIGHTING, SECONDARY POWER SUPPLY

	Heliport BCN	No.
	WDI/LDI	Location / lighting: No.
	TWY lighting	No.
	Apron lighting	Characteristics: Blue. Location: Perimeter.
	Secondary power supply	No.
	Remarks	None.

Air traffic services airspaceATS AIRSPACE

	Designation	ATZ EL COPERO
	Lateral limits	Circle of radius 5 km centred at HRP and bounded to the North by Sevilla CTR. (1)
	Vertical limits	SFC - 1000 ft AGL (2)
	Airspace class	D
	Unit Language	EL COPERO TWR ES
	Transition altitude	1850 m / 6000 ft
	Hours of applicability	-
	Remarks:	(1) Or the ground visibility, whichever is lower. (2) Or up to the clouds ceiling, whichever is lower.

Air traffic services communication facilitiesATS COMMUNICATION FACILITIES

Service	Call sign	FREQ	HR	Remarks
APP	Sevilla APP	120.000 MHz 120.800 MHz 128.500 MHz 278.400 MHz 369.275 MHz	HR HLP HR HLP HR HLP HR HLP HR HLP
TWR	El Copero TWR	126.750 MHz 129.375 MHz 121.500 MHz 243.000 MHz 339.200 MHz	HR HLP HR HLP HR HLP HR HLP HR HLP	EMERG EMERG

Service

Call sign

FREQ

Remarks

APP

Sevilla APP

120.000 MHz

120.800 MHz

128.500 MHz

278.400 MHz

369.275 MHz

HR HLP

TWR

El Copero TWR

126.750 MHz

129.375 MHz

121.500 MHz

243.000 MHz

339.200 MHz

HR HLP

EMERG

RADIO NAVIGATION and landing aidsfacilities

Facility (VAR)	ID	FREQ	HR	Coordinates	ELEV DME	Remarks
NDB (1°W)	EEC	327 kHz	H24	371843.4N 0060007.3W	-	-

LOCAL heliportREGULATIONS

No.

NOISE ABATEMENT PROCEDURES

No.

FLIGHT PROCEDURES

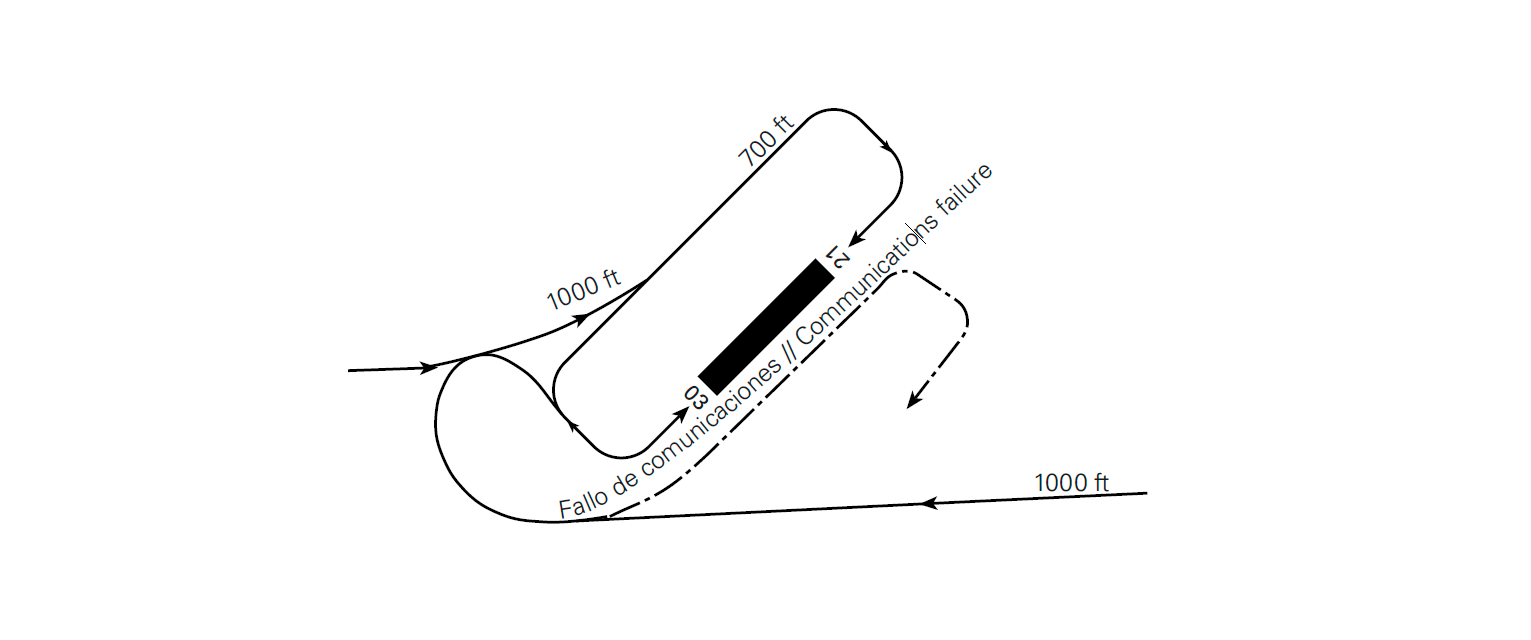

HLP TRAFFIC CIRCUIT

ADDITIONAL INFORMATION

No.

Charts related to a heliportCHARTS RELATED TO THE HELIPORT

The list of charts related to the heliport can be found on the link below:

https://aip.enaire.es/AIP/#LEEC

VISUAL SEGMENT SURFACE (VSS) PENETRATION

Information not available.
